Panasonic MFDDTB3A2 Servo Drive Control Serial Communication

Name: Panasonic MFDDTB3A2 Servo Drive Control Serial Communication
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: MFDDTB3A2
Price: 10000.00 USD
Availability: InStock

Produktdetails:

Herkunftsort:	Japan
Markenname:	Panasonic
Zertifizierung:	CE
Modellnummer:	MFDDTB3A2

Ausführliche Information

Herkunftsort:

Japan

Markenname:

Panasonic

Zertifizierung:

Modellnummer:

MFDDTB3A2

Modell:

MFDDTB3A2

Zustand:

neu

Serie:

MSD-Reihe

Typ:

AC-Servoverstärker

Marke:

Panasonic

Ursprungsland:

Japan

Paket:

Ursprünglicher Fabrik Kasten

Mindestbestellmenge:

1 STK

Hervorheben:

High Light

Hervorheben:

Panasonic servo drive control

AC servo amplifier with serial communication

MFDDTB3A2 servo drive

Handelsinformationen

Min Bestellmenge:

Preis:

Verhandelbar

Verpackung Informationen:

Neue Originalverpackung

Lieferzeit:

3-5 Werktage

Zahlungsbedingungen:

T/T/PayPal

Versorgungsmaterial-Fähigkeit:

Produkt-Beschreibung

Panasonic MFDDTB3A2 Servo Drive Control Serial Communication

Item	Specifications
Part Number	MFDDTB3A2
Product details	A4 Series Standard model Pulse train position command Analog velocity command Analog torque command Full-closed control serial communication
Family Name	MINAS A4
Series	A4 series
Frame	F-Frame
Frequency response (kHz)	1.0
Control method	Position, Speed, Totque, Full-closed control, Serial communication
Safety Function	without the safety function
I/F Classification of type	Analog / Pulse input
Dimensions (W) (Unit: mm)	130
Dimensions (H) (Unit: mm)	220
Dimensions (D) (Unit: mm)	200
Mass (kg)	6.0
Environment	For more details, please refer to the instruction manual.

Basic Specifications

Item	Specifications
Input power: Main circuit	3-phase 200 V (+10% -15%) to 230 V (+10% -15%) 50/60 Hz
Input power: Control circuit	Single phase 200 V (+10% -15%) to 230 V (+10% -15%) 50/60 Hz
Encoder feedback	17 bit (131072 resolution) absolute/incremental encoder 2500 P/r (10000 resolution) incremental encoder
About Encoder feedback	* When using it as an incremental system (not using multiturn data), do not connect the battery for absolute encoder. Parameter Pr. 0B must be set to "1" (factory settings).
External scale feedback	Serial communication
Parallel I/O connector: Control signal Input	10 inputs (1) Servo-ON, (2) Control mode switching, (3) Gain switching/Torque limit switching, (4) Alarm clear, (5)CW over-travel inhibit, (6)CCW over-travel inhibit. Other inputs vary depending on the control mode.
Parallel I/O connector: Control signal Output	6 outputs (1) Servo alarm, (2) Servo ready, (3) Release signal of external brake (4) Zero speed detection,(5) Torque in-limit. Other outputs vary depending on the control mode.
Parallel I/O connector: Analog signal Input	3 inputs (16 bit A/D : 1 inputs,10 bit A/D : 2 inputs)
Parallel I/O connector: Analog signal Output	2 outputs (for monitoring) (1) Speed monitor (Monitoring of actual motor speed or command speed is enabled. Select the content and scale with parameter.), (2) Torque monitor (Monitoring of torque command, [approx. 3V/rated torque]), deviation counter or full-closed deviation is enabled. Select the content or scale with parameter.)
Parallel I/O connector: Pulse signal Input	2 inputs Select the exclusive input for line driver or photo-coupler input with parameter.
Parallel I/O connector: Pulse signal Output	4 outputs Feed out the encoder pulse (A, B and Z-phase) or feedback scale pulse (EXA, EXB and EXZ-phase) in line driver. Z-phase and EXZ-phase pulse is also feed out in open collector.
Communication function	RS232, RS485
Communication function: RS232	1 : 1 communication to a host with RS232 interface is enabled.
Communication function: RS485	1 : n communication up to 15 axes to a host with RS485 interface is enabled.
Regeneration	Built-in regenerative resistor (external resistor is also enabled.)
Control mode	Switching among the following 7 mode is enabled, (1) Position control, (2) Speed control, (3) Toque control, (4) Position/Speed control, (5) Position/Torque control, (6) Velocity/Torque control and (7) Full-closed control.

Panasonic MSD-EX SERIES

MSD043P1EA
MSD043P1EB
MSD043P1EC
MSD043P1ED
MSD043P1EE
MSD043P1EF
MSD043P1EG
MSD043P1EH
MSD043P1EI
MSD043P1EJ
MSD043P1EK
MSD043P1EL
MSD043P1EM
MSD043P1EN
MSD043P1EO
MSD043P1EP
MSD043P1EQ
MSD043P1ER
MSD043P1ES
MSD043P1ET
MSD043P1EU
MSD043P1EV
MSD043P1EW
MSD043P1EX
MSD043P1EY
MSD043P1EZ

IV.Similiar Servo Amplifier

MSDA3A1A1A
MSDA5A1A1A
MSDA011A1A
MSDA021A1A
MSDA041A1A
MSDA3A3A1A
MSDA5A3A1A
MSDA013A1A
MSDA023A1A
MSDA043A1A
MSDA083A1A
MSDA103A1A
MSDA153A1A
MSDA203A1A
MSDA253A1A
MSDA303A1A
MSDA353A1A
MSDA403A1A
MSDA453A1A
MSDA503A1A
MSDA3A1D1A
MSDA5A1D1A
MSDA011D1A
MSDA021D1A
MSDA041D1A
MSDA3A3D1A
MSDA5A3D1A
MSDA013D1A
MSDA023D1A
MSDA043D1A
MSDA083D1A
MSDA103D1A
MSDA153D1A
MSDA203D1A
MSDA253D1A
MSDA303D1A
MSDA353D1A
MSDA403D1A
MSDA453D1A
MSDA503D1A

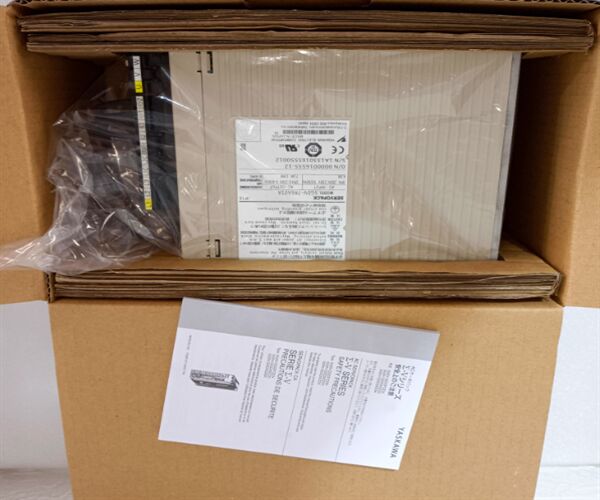

V.Real Pictures.
