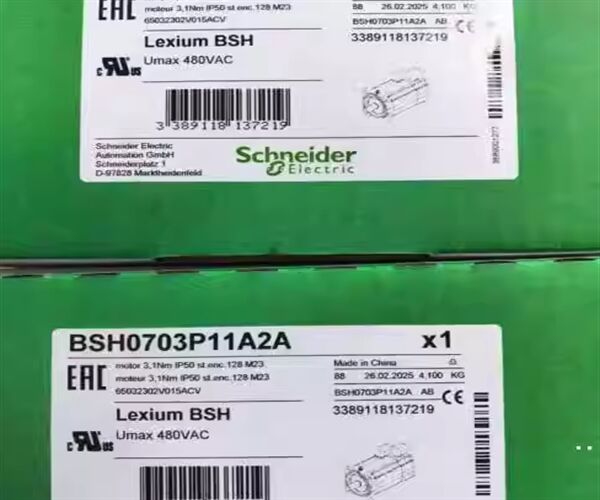

Schneider BSH0703P11A2A Motor 70 Ip40 Keyed Inc No-Brake Angled
Description
This product is part of the Lexium range, an offer of motion servo drives and servo motors. The 6-pole AC servo motor features a low moment of inertia with maximum mechanical speed of 8000RPM and IP54 parallel keyed shaft without holding brake. It is equipped with a single-turn (131072 points/turn) SinCos Hiperface® high-resolution absolute encoder giving an angular shaft position precise to less than ±1.3 arc minutes. BSH servo motor satisfies requirements for precision and high dynamic performance, due to the low rotor inertia. It is compact, and offers a high power density. It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 4.1A and a maximum continuous power of 1.7W. The shaft dimensions are 14mm (Diameter) x 30mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP50 rated product. Its dimensions are 220mm (Length) x 70mm (Width), centring collar dimensions are 2.5mm (Depth) x 60mm (Diameter) with 82mm circle diameter of the mounting hole. It weighs 3.62kg. This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives. It supports international standard 70mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BSH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
| Motor Inertia: |
0.58 KG-SQ CM |
| Feedback Type: |
SINGLE TURN HIGH RESOLUTION ENCODER |
| Enclosure: |
IP50 |
| Weight: |
3.62 KG |
| Approval: |
UL, CE |
| Used On: |
LEXIUM[R] LXM32 SERIES SERVO DRIVE |
| Additional Information: |
SHAFT TYPE KEYED; FLANGE SIZE 70 MM; WITH ROTATABLE RIGHT ANGLED CONNECTOR; WITHOUT HOLDING BRAKE |
| Catalog Number: |
BSH0703P11A2A |
| Brand Name: |
Lexium[R] |
| Model: |
BSH |
| Voltage Rating: |
208 TO 480 V 3 PHASE |
| Power Rating: |
1300 W |
| Number of Poles: |
6 |
| Torque Rating: |
3.1 N-M |
| Speed Rating: |
8000 (MECHANICAL) RPM |
| Category: |
Motors |
| Full Technical Description: |
Synchronous Type; Lexium LXM32 Servo Drive Used on; UL, CE Approval; 480 Volt AC 3-Phase Voltage Rating; IP50 Enclosure; 4.1 Amp Current Rating; 7.98 Pound Weight; 1300 Watt Power Rating; 5000 RPM Speed Rating; 6 Pole(S); 3.1 Newton-Meter Torque Rating; 0.58 Kilogram-Square Centimeter Motor Inertia; Single Turn High Resolution Encoder Feedback Type; Rohs/Reach/Weee Compliant; Length 8.66 Inch; Shaft End Type Keyed; Flange Size 70 Millimeter; Number of Stack 3; Connection Type Rotatable Right Angle Elbow Connector; Case Finish Ral 9005 Opaque Black Paint Coated; Mounting Hole Diameter (4) 0.22 Inch; Without Holding Brake; Applicable Standard IEC; BSH Model |
| Manufacturer: |
Square D Co. |
| Manufacturer Brand: |
Square D Co. |
| Product Description: |
Square D BSH0703P11A2A Motor 70 Ip40 Keyed Inc No-Brake Angled |
| Prop 65 warning: |
WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING: LEAD AND LEAD COMPOUNDS, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV |
| Proposition 65 Warning (CA): |
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Sub-Category: |
AC Servo Motor |
| UPC 12 Digit: |
389118137212 |
| Unique Product Key: |
5700255 |
| comm code enhanced: |
68000 |
