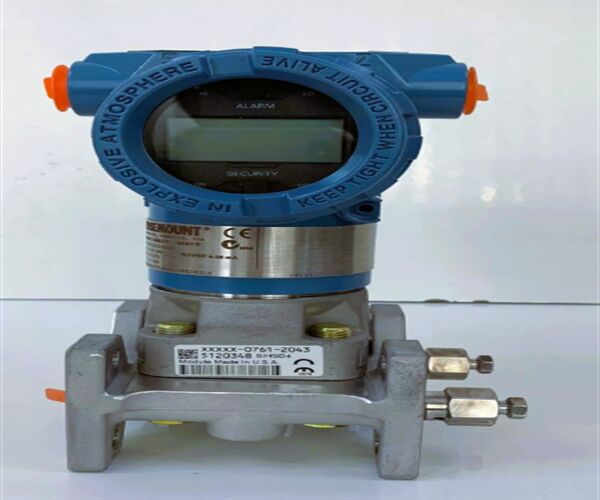

Emerson Rosemount 3051CD3A02A1AK5S5 Smart Differential Pressure Transmitter

Name: Emerson Rosemount 3051CD3A02A1AK5S5 Smart Differential Pressure Transmitter
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: 3051CD3A02A1AK5S5
Price: 10000.00 USD
Availability: InStock

Produktdetails:

Markenname:	Rosemount
Zertifizierung:	CE
Modellnummer:	3051CD3A02A1AK5S5

Ausführliche Information

Markenname:

Rosemount

Zertifizierung:

Modellnummer:

3051CD3A02A1AK5S5

Hervorheben:

High Light

Hervorheben:

Emerson Rosemount 3051 pressure transmitter

smart differential pressure transmitter

industrial pressure temperature transmitter

Handelsinformationen

Min Bestellmenge:

Preis:

Verhandelbar

Verpackung Informationen:

Neu im Originalkarton

Lieferzeit:

3-5 Werktage

Zahlungsbedingungen:

T/T

Versorgungsmaterial-Fähigkeit:

1000

Produkt-Beschreibung

Emerson Rosemount 3051CD3A02A1AK5S5 Smart Differential Pressure Transmitter

Model Components:
- Model: 3051C coplanar pressure transmitter, with ‘D’ representing differential pressure measurement type.
- Pressure Range: The Rosemount 3051CD differential pressure transmitter offers various pressure ranges, such as 0 to 30 psia (0 to 2.06 bar).
Transmitter Output:
- 4-20 mA with digital signal communication based on the HART protocol.
- Options for FOUNDATION Fieldbus protocol or PROFIBUS PA protocol are also available.
Process Connection Types:
- The specific process connection types are not explicitly listed in the search results, but typically, Rosemount 3051CD transmitters provide a variety of process connection options to accommodate different installation requirements.
Display and Interface Options:
- M4 digital display with LOI, suitable for 4-20 mA HART and PROFIBUS PA types.
- M5 digital display, a two-line five-digit LCD display for low-power output.
- M6 graphic LCD display, suitable for 4-20 mA HART.
Configuration Buttons:
- Rosemount 3051 transmitters are shipped without buttons unless options D1 (Quick Service Button), D4 (Analog Zero and Span), DZ (Digital Zero), or M4(LOI) are specified as local configuration buttons.
Transient Protection:
- Tested according to IEEE C62.41.2-2002 Class B locations, with 6 kV peak (0.5 μs–100 kHz) and 3 kA peak (8 x 20 μs).
Overpressure Limit and Static Pressure Limit:
- For 3051CD/CG, ranges 2-5 are 31MPa; range 1 is 13.8MPa; 3051T type up to 103.4MPa.
- Only for 3051CD type, 3.5kPa-a to 31MPa-g; for ranges 2-5, 31MPa is optional. See PDS for details.
Power Supply and Dimensions:
- Power Supply: Operates on 10.5-55V DC unloaded.
- Dimensions: Approximately 198 x 126 x 104mm.
Certifications and Protection Ratings:
- Hazardous location certifications include ATEX, CSA, FM, IECEx.
- Ingress Protection Ratings: NEMA 4X, IP66, IP68.
